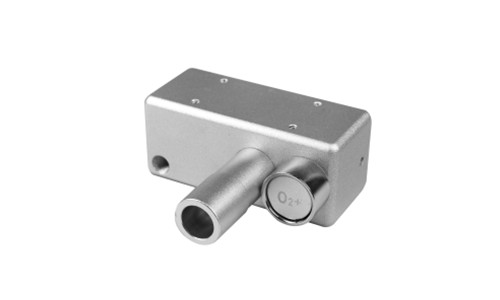

Description of O2 Flush device WMA600
Name:Oxygen Flush Device
Model:WMA600
Description
O2 Flush device is suitable for a quick oxygen supply directly at the mixed gases outlet at the end of an anesthesia circuit
The O2 Flush device is suitable for a quick oxygen supply directly at the mixed gases outlet at the end of an
anesthesia circuit.
Made of anodized aluminum, it is equipped with an anesthetic mixture inlet connection,an oxygen enriched
mixture outlet connection,an O2 feeding connection and a supply button. Different constructions can be made
on request
Sizes (LxWxH) 93x63x80 mm
Weight 0.34 Kg
Mixed gases iniet connection conical connection 23 mm M., ISO DIN 5356/1
Mixed gases outlet connection conical connection 23 mm F., ISO DIN 5356/1
Feeding 3.5 - 5 bar ¡À 20%
O2 feeding connection automatic type for Ø 6 mm PA hose
O2 quick supply when pushed it can supply more than 45 L/min. O2 (at 3.5 bar)
